Double Drum Wireline Winch

Double Drum Wireline Winch

Cummins diesel power back 132kw, 180hp

Max. Line Pull. 25KN

Max. Line Speed. 300/min

For wire size: φ3.2mm(for both wire size 0.108” and 0.125”), capacity 5000m

Max. Line Pull: 15KN, 0~350m/min stepless speed

For cable size. Φ5.6mm

Max. Line Pull. 30KN, 0~150m/min stepless speed

With DYNASET hydraulic generator

Double drum testing and fishing operations

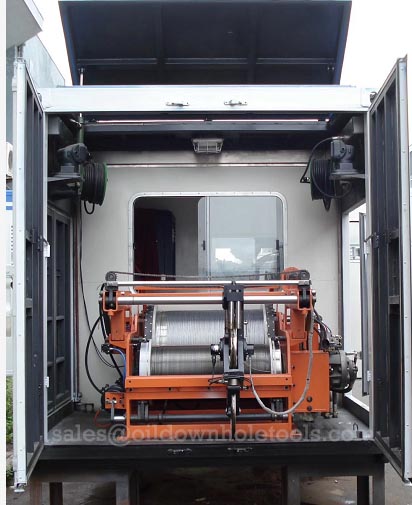

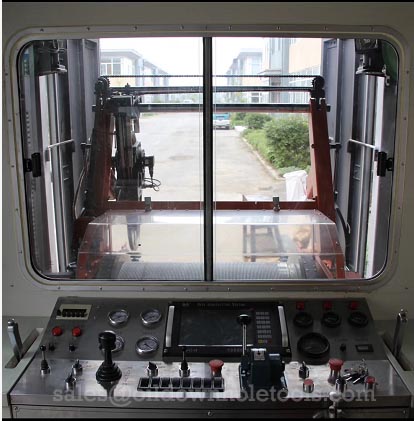

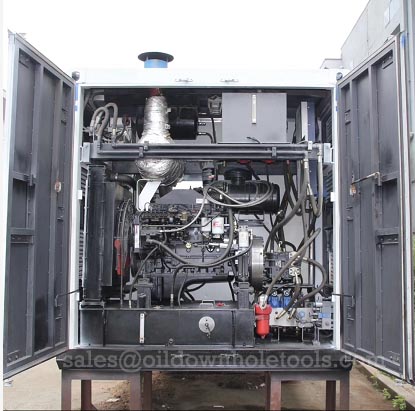

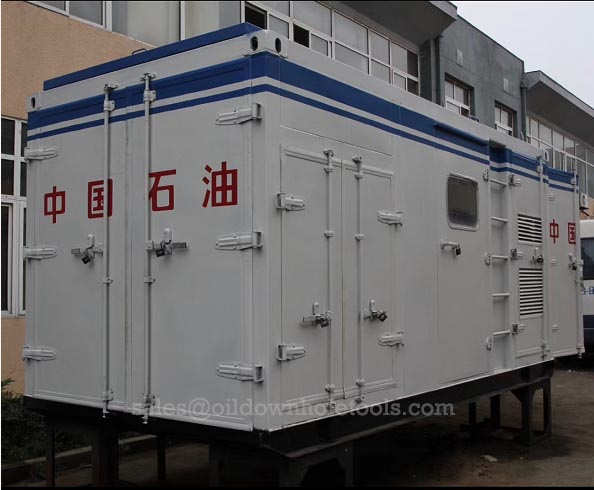

Green Energy Double Drum Winch is used in onshore offshore wireline operations, which is skid-mounted design and easy transportation. It occupy less space and are generally divided into two parts: the power unit and wireline winch. Winch power unit consists of a diesel engine (electric motor) and hydraulic fluid. Diesel engine (electric motor) drives hydraulic pump, which delivers the fluid to winch via a high-pressure hose. Wireline winch primarily comprises a hydraulic motor, transmission mechanism, control mechanism, depth counter and wire drum. Please feel free to contact with us for more details.
