Hydraulic Single-Drum Slickline Winch

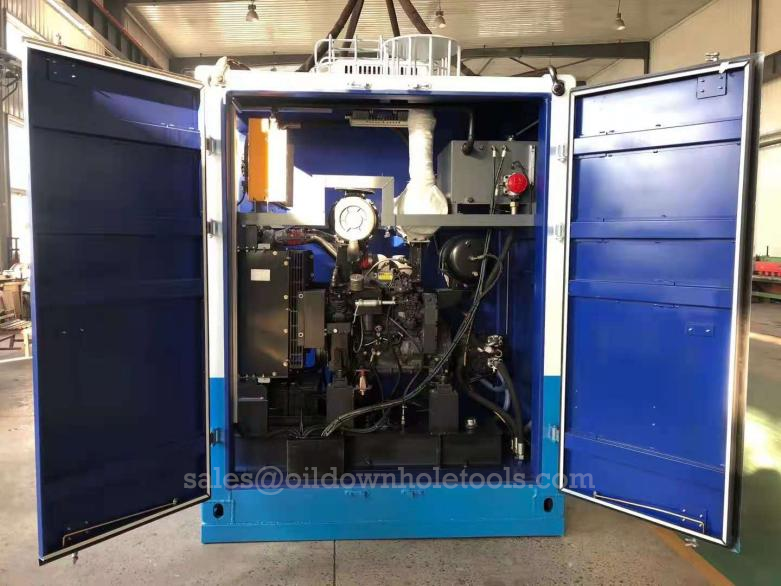

Hydraulic Drive System
Powerful 4 Cylinder Italy FTP diesel engine provide 93kw(126hp)@2,200RPM
Rated Hydraulic Pressure: 30Mpa
Displacement: 4,485 cm³

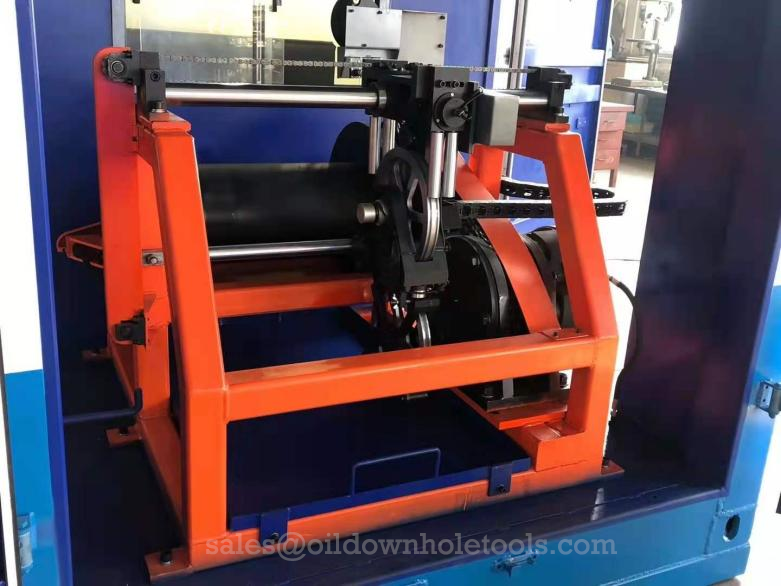

Winch System
Winch Drum Capacity: 27000ft
Suitable for wire size:φ3.175mm(for both wire size 0.108” and 0.125”)
Max. Line Pull: 30KN
Max. Line Speed: 3000/min
Suitable for heavy duty jarring operation and fishing operation
Air System: Supercharge and after-cooling
Dimension: 3800×1900×2400mm
